48V 15Ah Rack
Lithium Battery Pack with BMS/Charger. It's easy to fix on your bike frame.
* BMS(BATTERY MANAGEMENT SYSTEM) and 100V~240VAC 50/60Hz 1.8A Universal Charger Included
| * Nominal Voltage (V): |
48V |
| * Nominal Capacity (Ah): |
15Ah |
| * Source Resistance (mΩ): |
40mΩ |
| * Cell Combination: |
1-parallels |
| 13-series |
| *Cell Quantity (parallel*series): |
13 pcs |
| * Discharge Cut off Voltage (V): |
26V |
| * Charge Cut off Voltage (V): |
54V |
| * Max Discharge Current (A): |
50A |
| * Max Continuous Discharge Current (A): |
30A |
| * Charge Mode: |
CC-CV |
| * Standard Charge Current (A): |
2.0A |
| * Charge Time under Standard Charge Current |
6 hours |
| * Charge Temperature Range: |
-20-55℃ |
| * Discharge Temperature Range: |
-20-55℃ |
| * Charging Cycles: |
>2000 times |
| * Dimensions: |

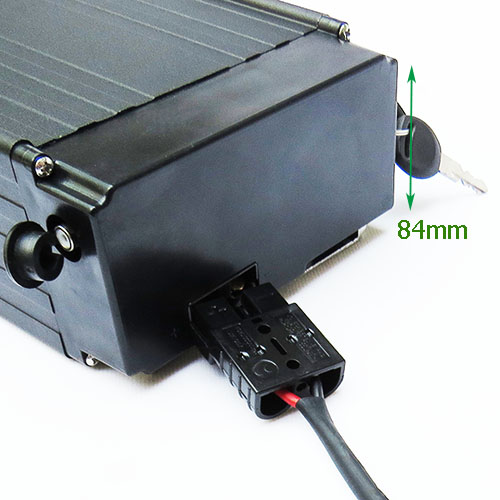

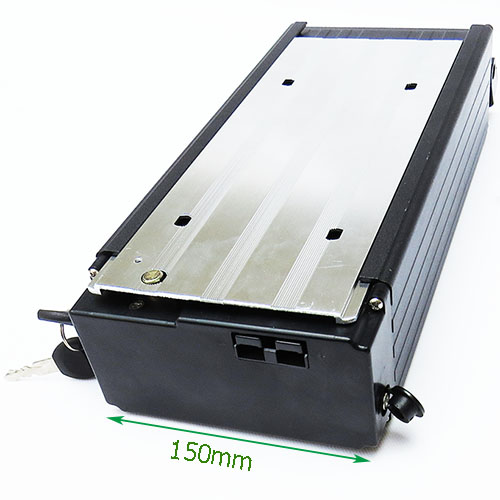

363mm L × 150 mm W × 84 mm H |
| * Battery Net Weight: |
5.75 kgs |
| * Battery Gross Weight(with all parts and package): |
6.2 kgs |

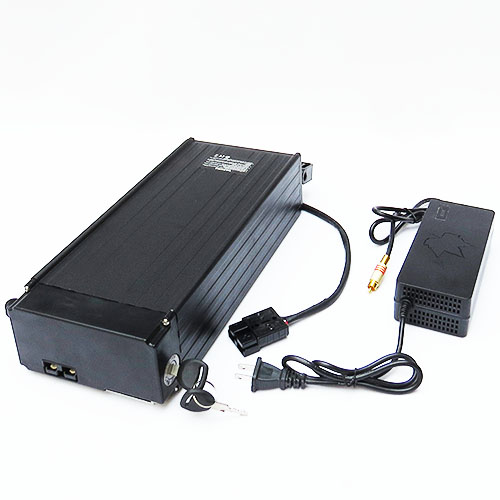

Package Content:
1 x 48V 15Ah rack
lithium battery
1 x 48V 100V~240VAC 50/60Hz 2.0A charger
Net weight: 6.2Kg (with charger + slippery plate + discharging wire)
It's fit for drive Leaf Newest Version 1000W hub motor kit.
Package Size: 40cm L x 20cm W x 15cm H
Package Type: Cardboard Box
