* This 12 inch scooter motor kit system handle a 48V or 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).


Main Features:
Hub: Ø218mm Casted Alloy (Hub Fit For: 12 × 2.125" / 2.5" tire)

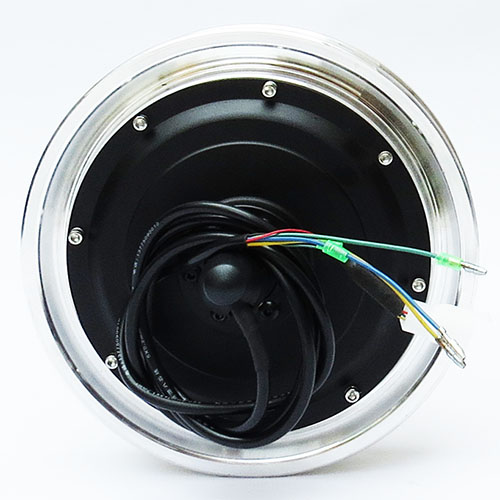

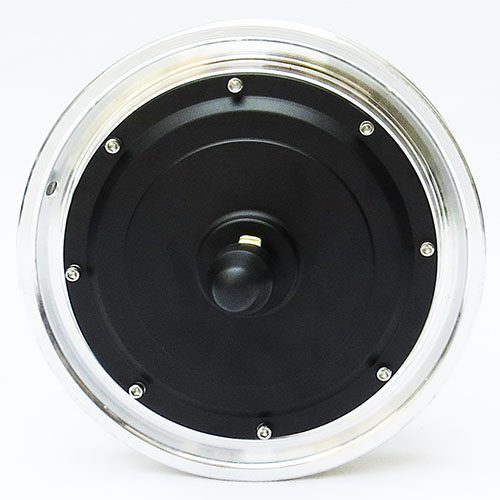

Hub motor: brushless gearless dc motor
Controller: With LCD - 008HU
Max speed: 35.3 kmh / 21.6 mph
Mechanical brake: V or Disk
Install: spacing of 100mm front fork

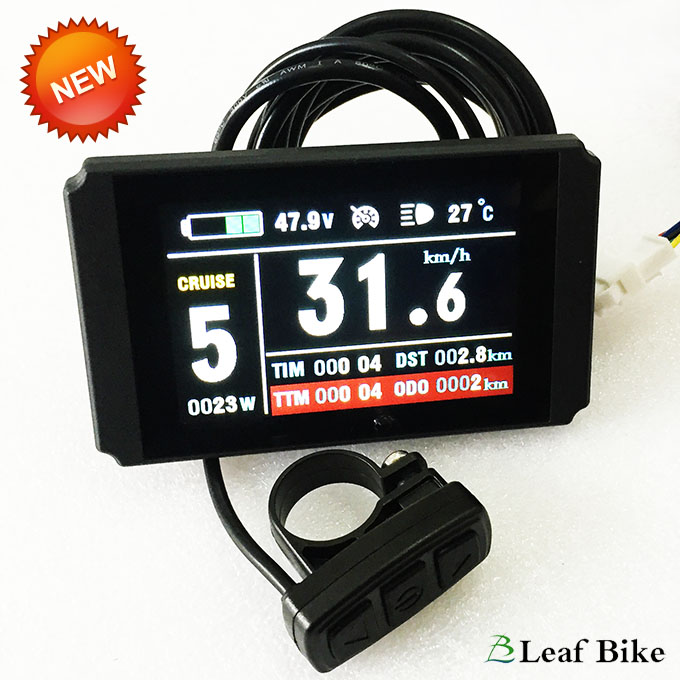

LCD-008HU With USB Port & Color screen, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed
* Pedal assist ( 1 - 5 )
* ...

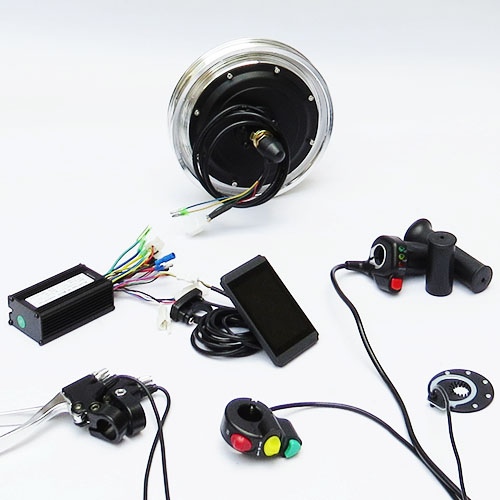

Package Content:
1 x 12 inch 48V / 52V 500W front hub motor wheel
1 x 48V / 52V 6-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen

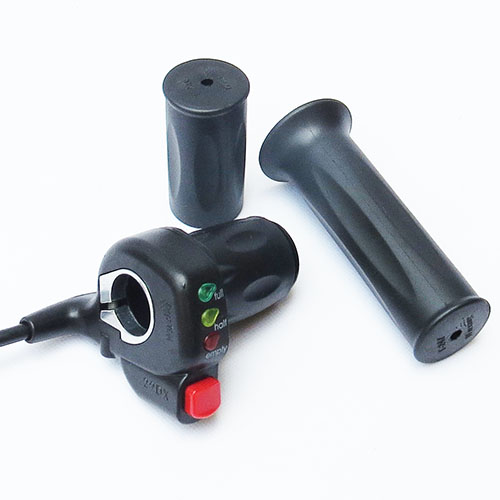

1 x twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 6.6 kg
Package Size: 28mm L x 25mm W x 40mm H
Package Type: Cardboard Box

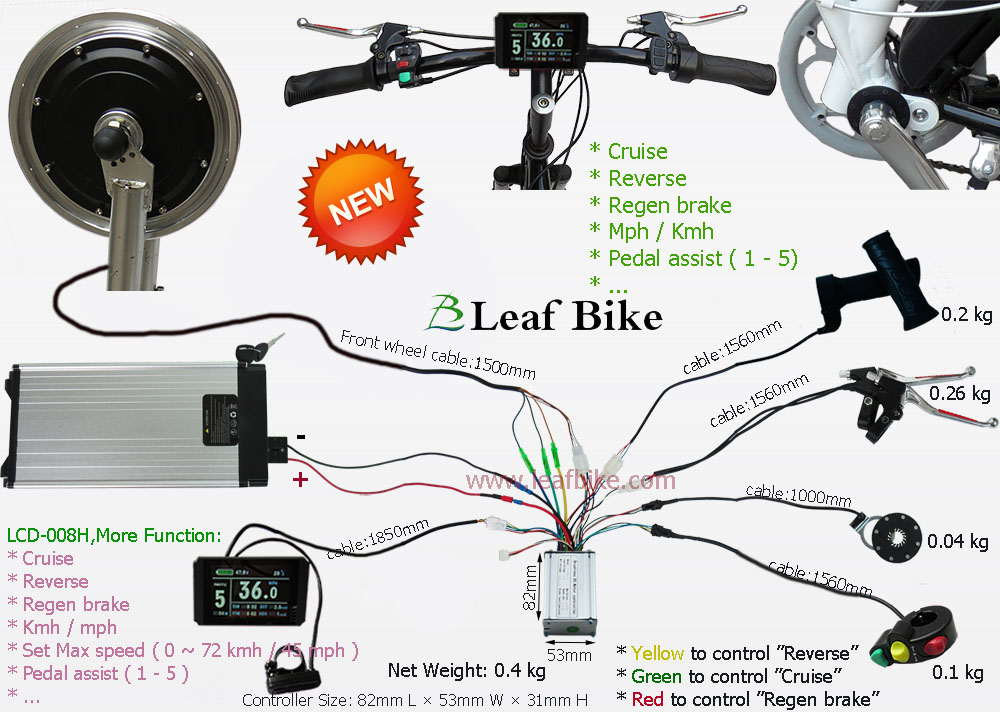

Share Video:	Wire Diagram:	12 inch front hub motor Drw.	Performance Data:
