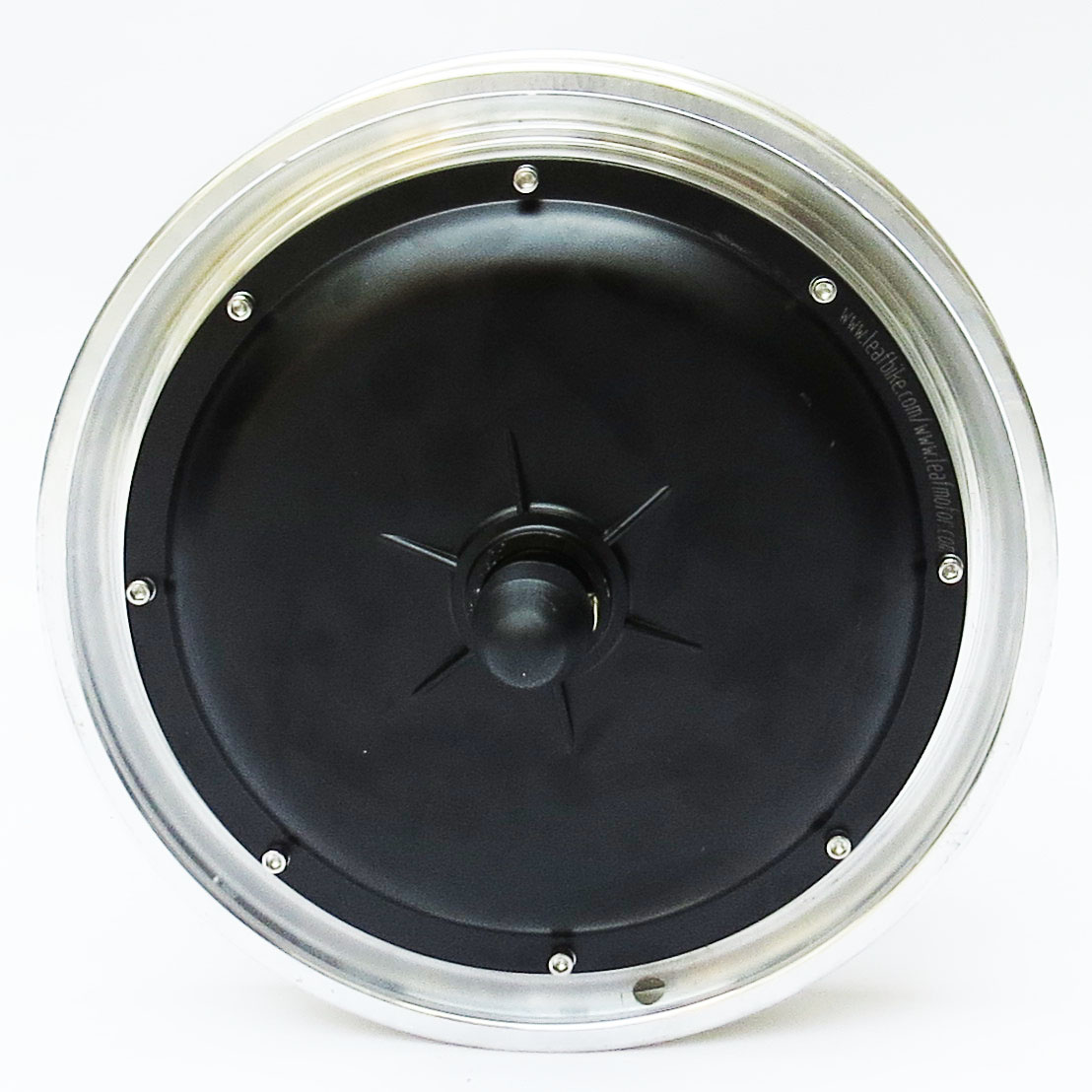

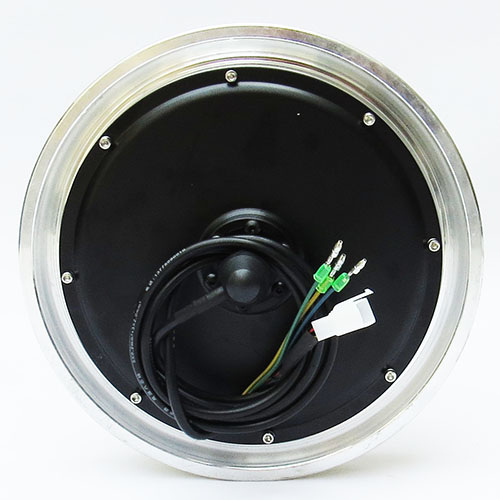

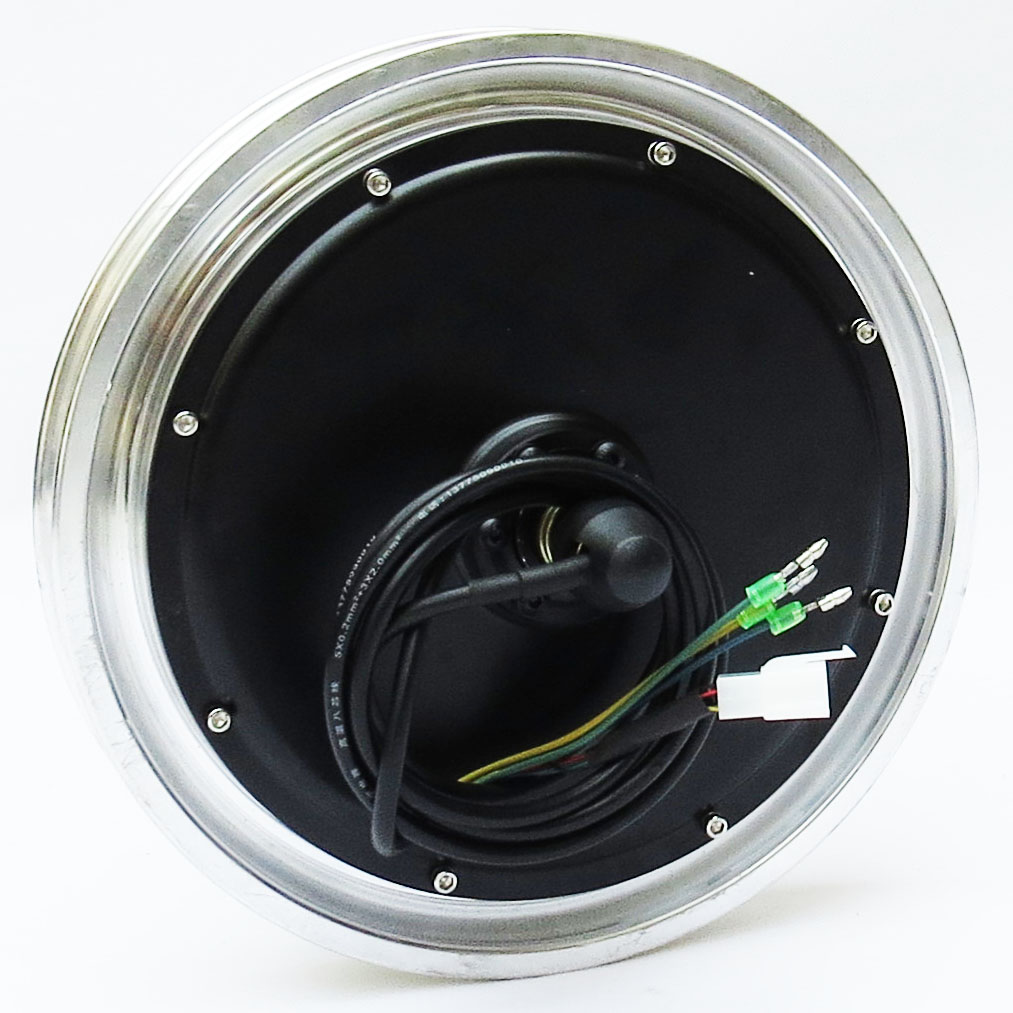

14 inch 36V 750W front casted hub electric bike motor wheel

Item No.: LMM1436750F
Convert your scooter to electric scooter with leaf 14 inch 36V 750W front casted hub electric bike motor.
Description
This 14 inch scooter motor combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø271mm Alloy casted hub ( Hub Fit For: 14 × 2.125“ , 14 × 2.5" tire)
>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 35.7 kmh -- 22.1 mph
>>. Mechanical brake: Disk or  V
>>. Cable location: shaft end , LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

Net Weight: 6.35 kg   /  14 lbs
Package Size: 34cm L x 34cm W x 25cm H
Package Type: Cardboard Box

Share Video: 14 inch front hub motor Drw.  Performance Data:

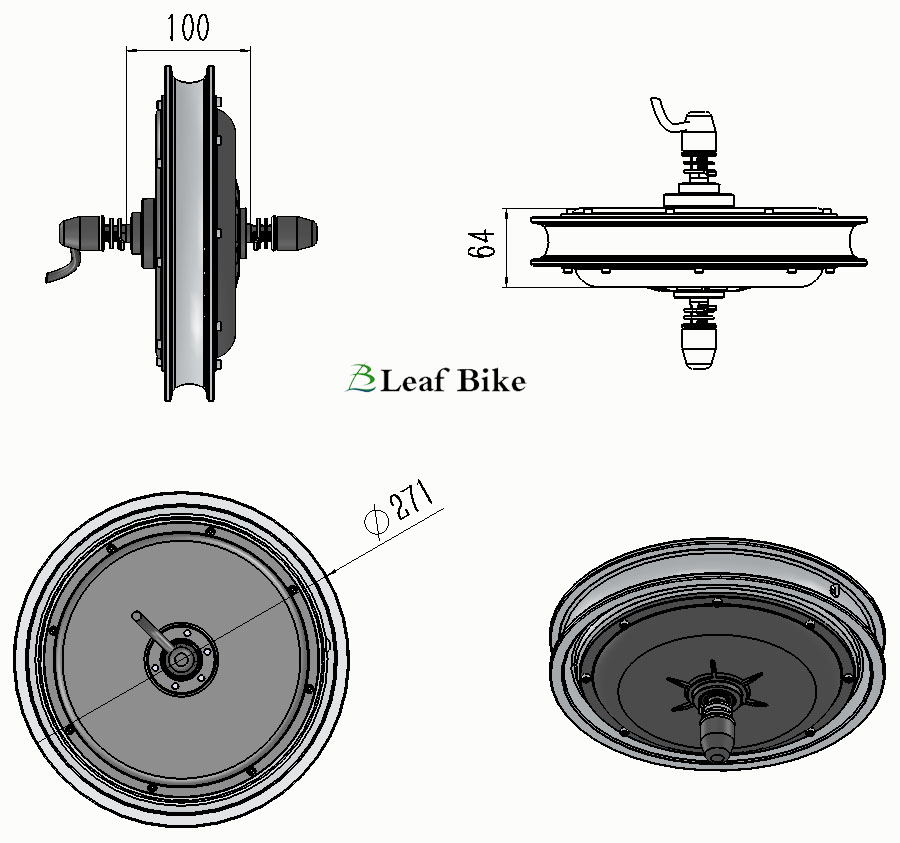

14 inch front electric hub motor drawing
