* This 14 inch scooter motor kit system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Main Features:

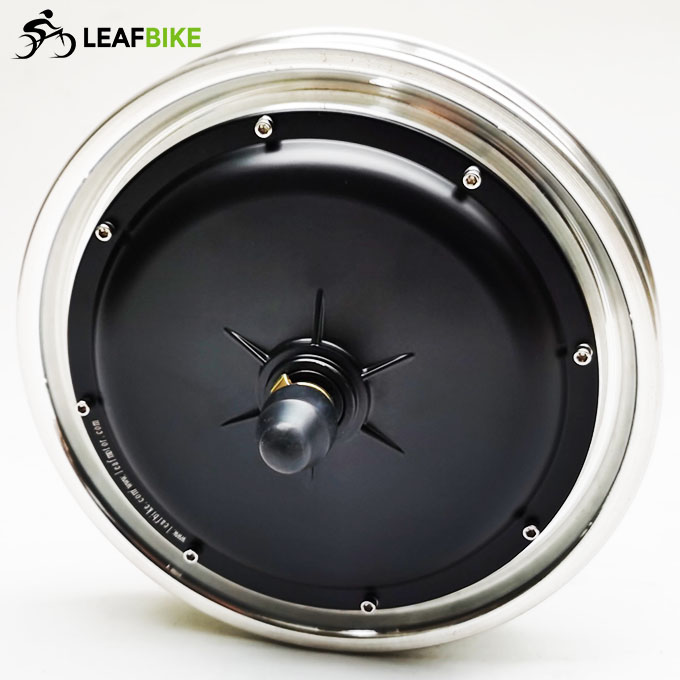

Hub: Ø271mm Alloy casted hub (Hub Fit For: 14 × 2.125" / 2.5" tire)
>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 48.3 kmh -- 30.0 mph
>>. Mechanical brake: Disk or  V

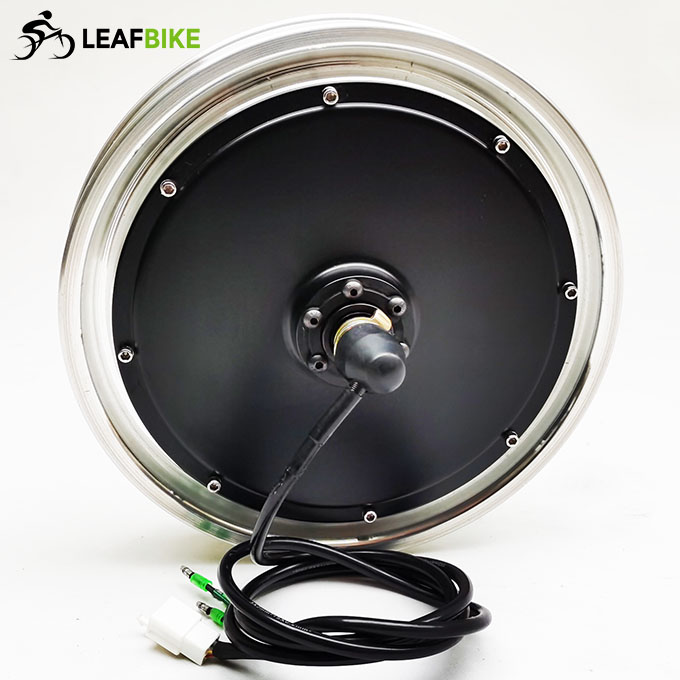

>>. Cable location: shaft end , LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm front fork
>>. Noise: < 60 db
>>. Surface: Black painted

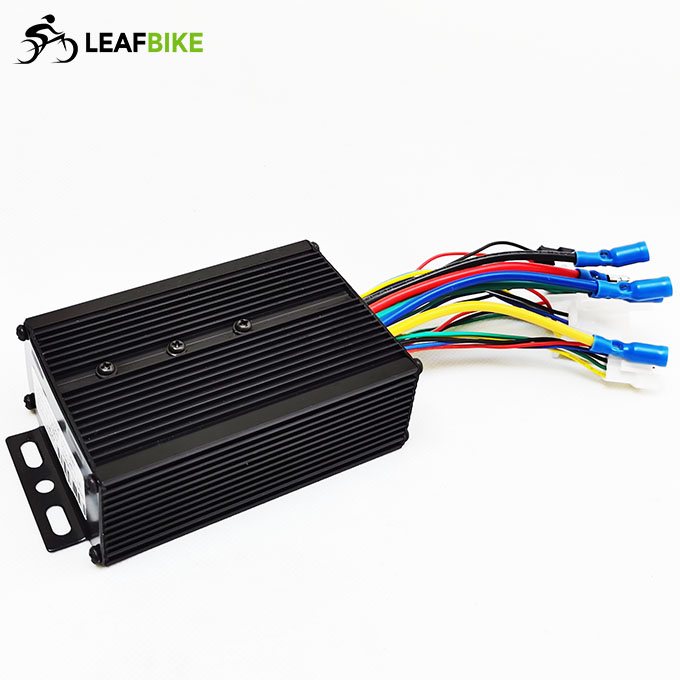

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

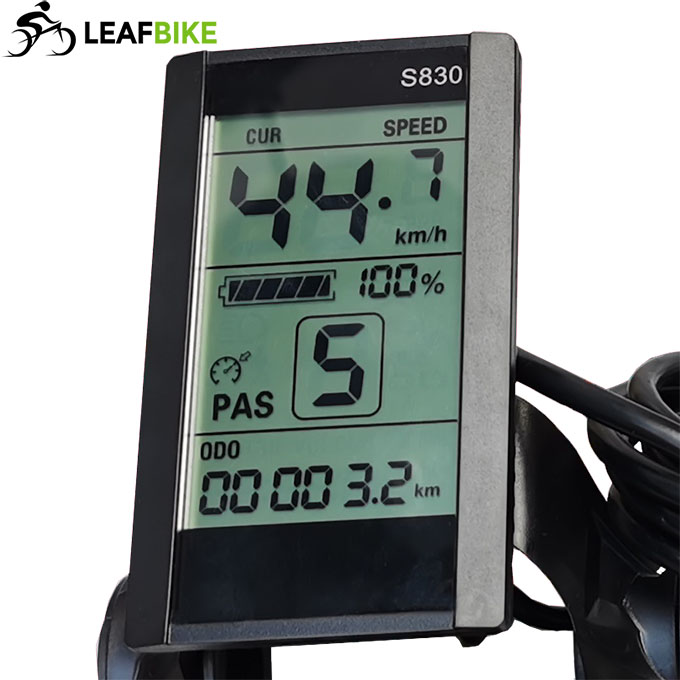

LCD-S830, More Function:
* Cruise -- Green switch to control
* Forward & Backward (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh)
* Set 5 speeds ( 1 - 5 ) -- "0" is off. "1" is the slowest ~ "5" is the fastest.
* Battery gauge
* ...

Package Content:
1 x 14 inch 48V / 52V 1000W front hub motor wheel
1 x 48V / 52V 1000W 12-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 9.0 kg   /  19.8 lbs
Package Size: 46cm L x 46cm W x 25cm H
Package Type: Cardboard Box


Share Video:	Wire Diagram:	14 inch front hub motor Drw.	Performance Data:
