* This 18 inch scooter motor system handle a 48V or 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
Hub: Ø372mm Casted Alloy (Hub Fit For: 18 × 2.125" ~ 2.5" tire)
Motor Type: electric scooter motor
Voltage: 48V / 52V
Power: 1000W
Efficiency: ≥ 90%
Max speed: 63.7 kmh -- 39.5 mph
Mechanical brake: V or Disk
Cable location: shaft end , Left
Cable length:150cm / 60"
Install: spacing of 100mm front fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.35kg / 16.2 lbs
Gross weight: 8.85Kg ( after packing )

Package Content:

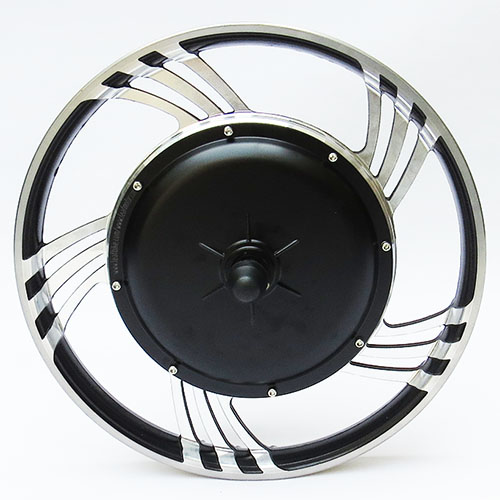

1 x 18 inch 48V / 52V 1000W front electric scooter motor

Package Size: 46cm L x 46cm W x 25cm H
Package Type: Cardboard Box

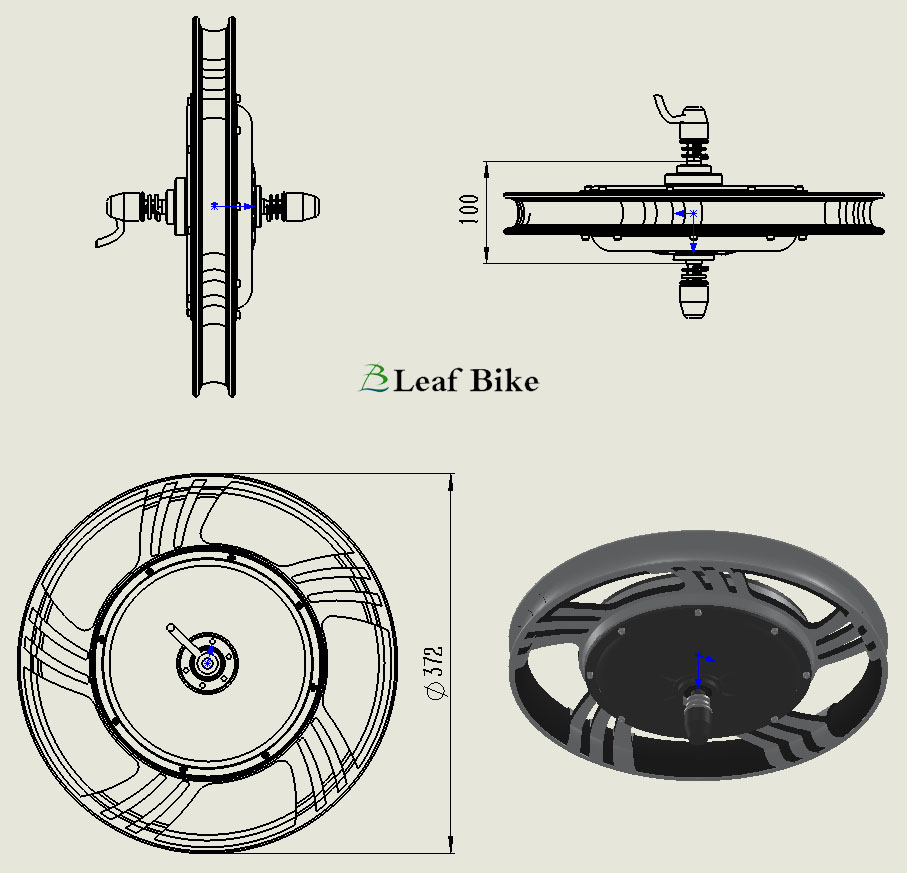

18 inch hub motor Drw.	Performance Data:
