* This 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
>. Rim: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95"  / 2.0" ~ 2.5" tire)
>. Spoke: Black color 12 gauge / 131mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 55.9 kmh -- 34.3mph
>>. Mechanical brake: Disk or  V
>>. Freewheel: max 7 speed
>>. Cable length:100cm / 40"  -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of 135mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-008HU With USB Port & Color screen, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph ) --  If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 ) -- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

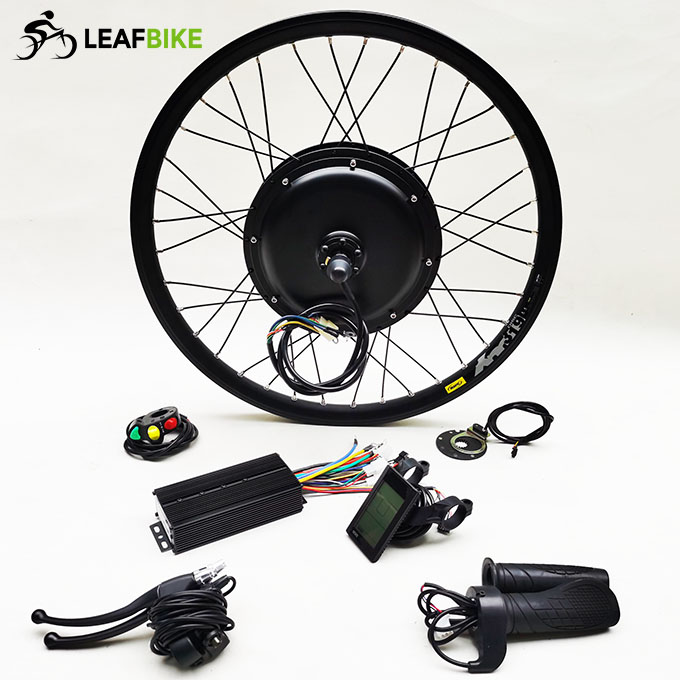

Package Content:

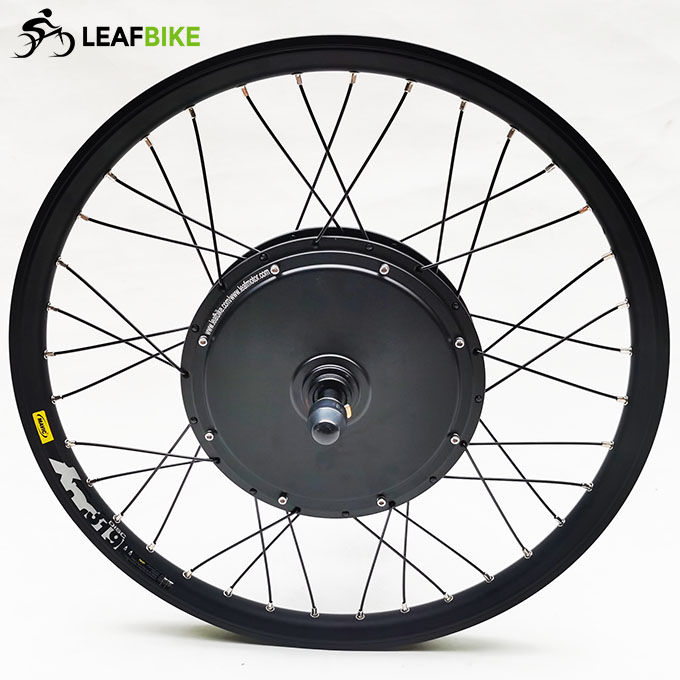

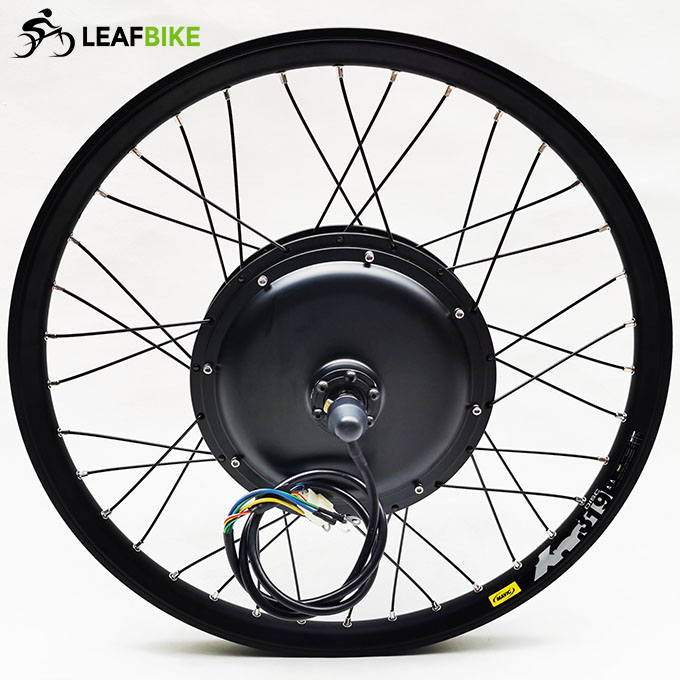

1 x 24 inch 48V / 52V 1500W rear bike motor wheel

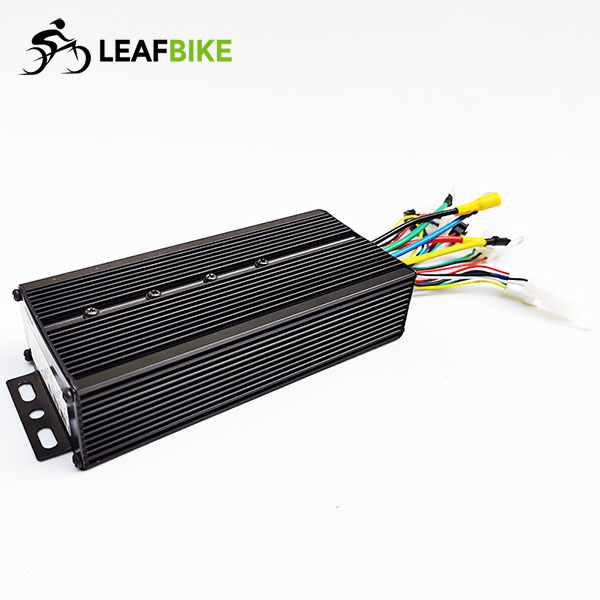

1 x 48V / 52V 1500W 12-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
