This 26 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 26 inch hub motor kit can work with a 48V or 52V battery.

Main Features:
>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 69.6 kmh -- 42.9 mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...)
>>. Mechanical brake: V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Speeds ( 0 - 5 ) "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* ...

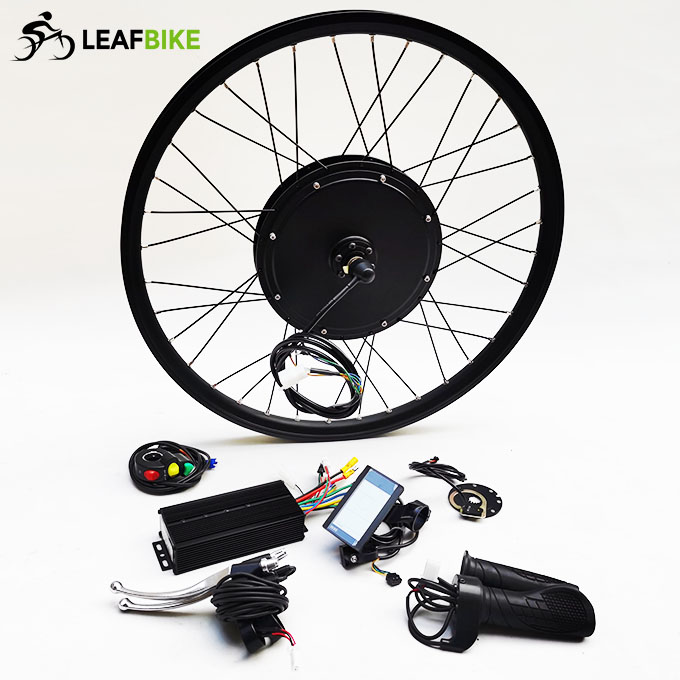

Package Content:

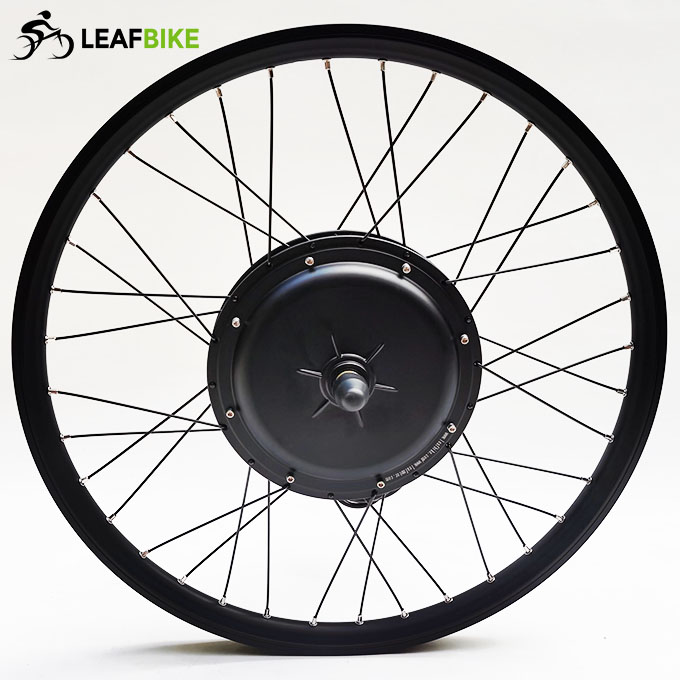

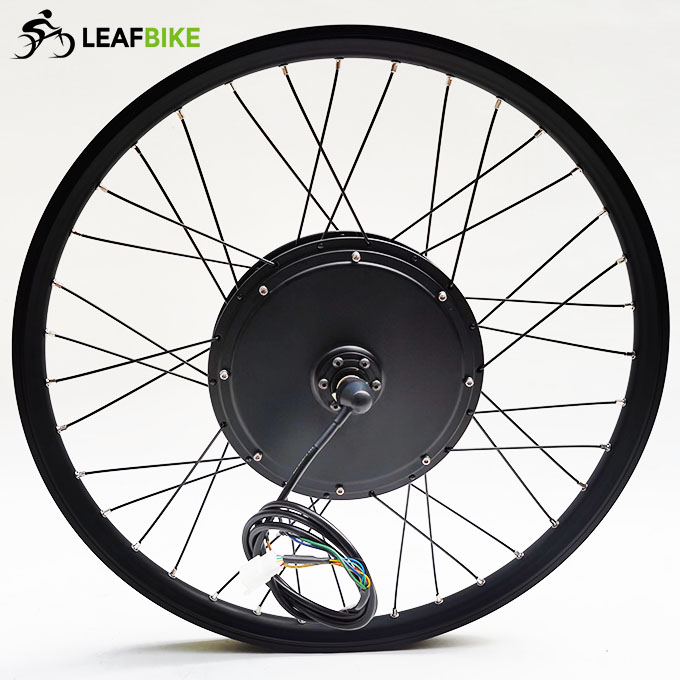

1 x 26 inch 48V / 52V 1500W front hub motor wheel

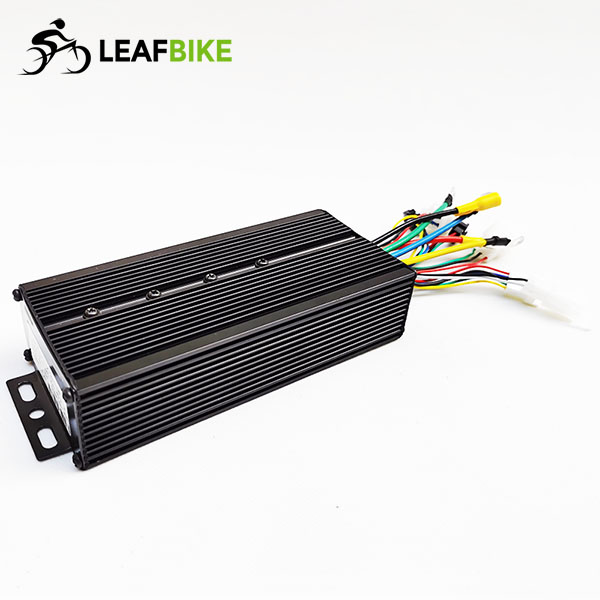

1 x 48V / 52V 1500W 18-MOSFET motor controller

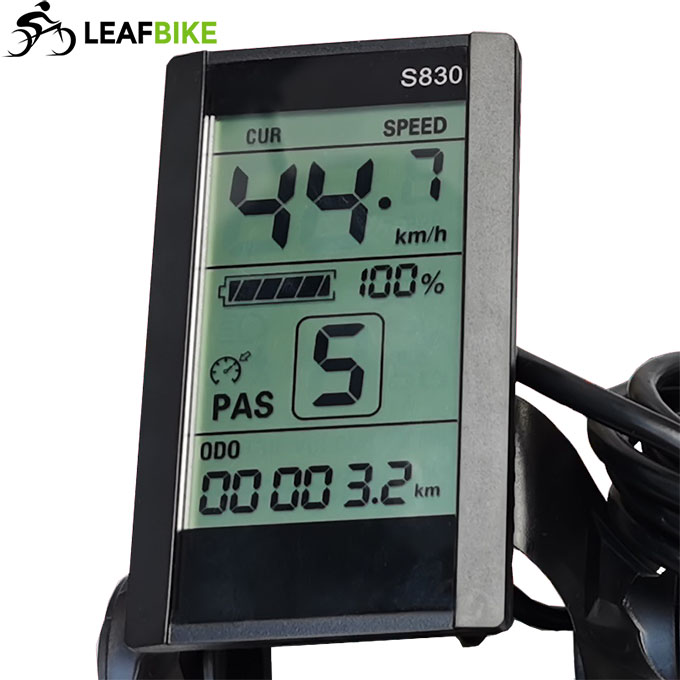

1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 25.6 lb
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box

Diagram:	Motor Drw.	Performance:
