This 26 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 26 inch bike conversion kit works with a 60V battery.

Main Features:
>. Rim A: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tyre)
>. Spoke: Silver 12 gauge / 154mm Length × 36 pcs

>. Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tyre)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 72.9 kmh -- 45.3 mph
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless motor controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 55A ± 2 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

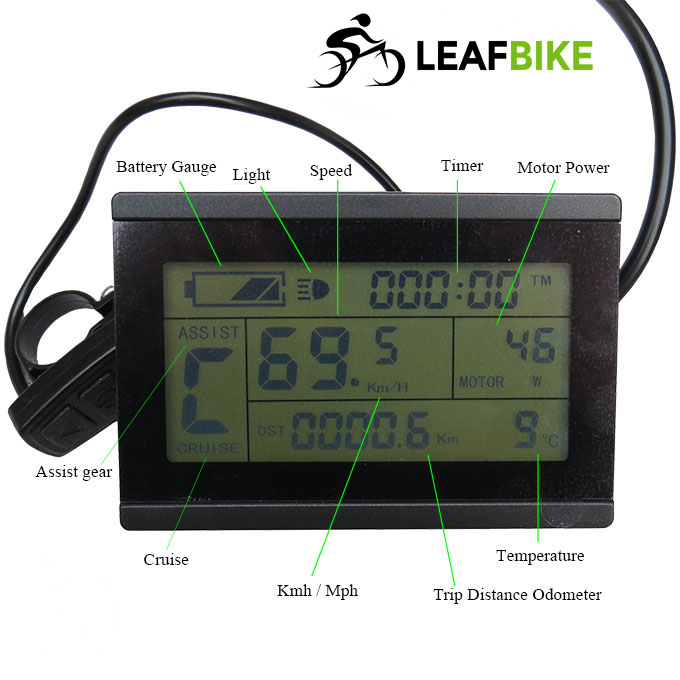

With LCD-003, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / Backwards")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

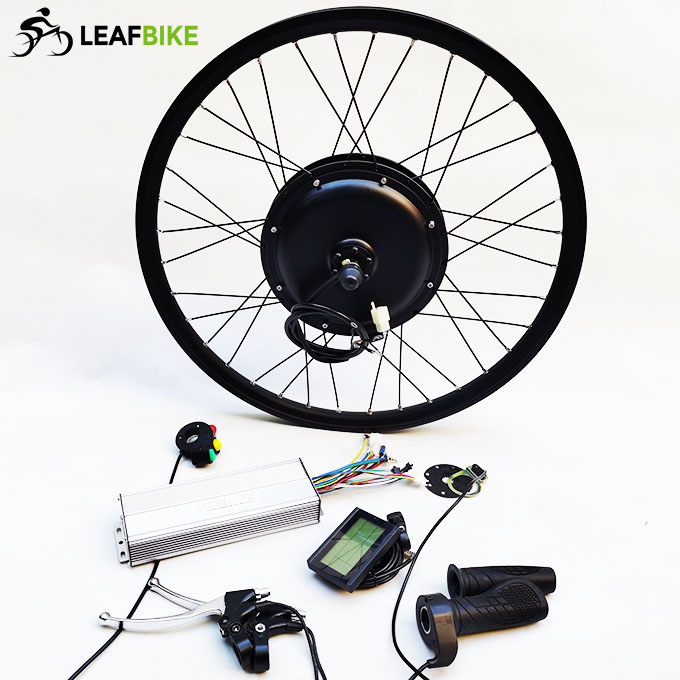

Package Content:

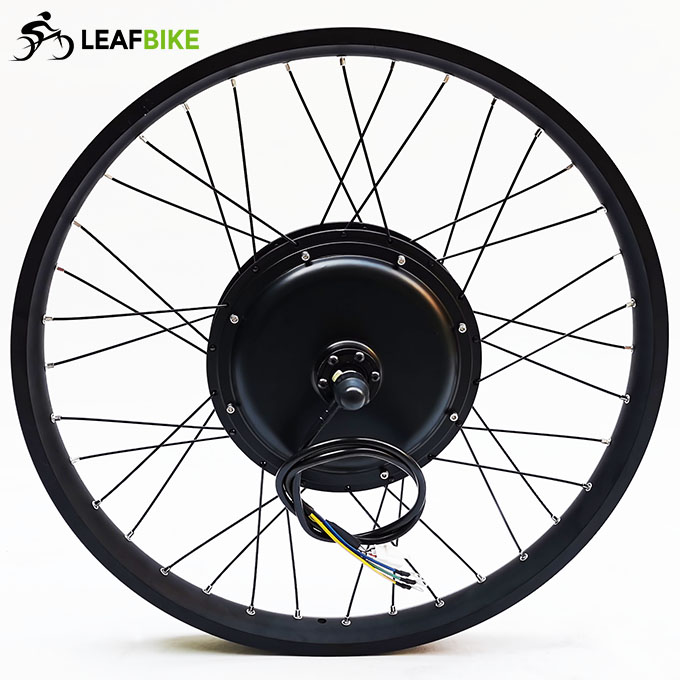

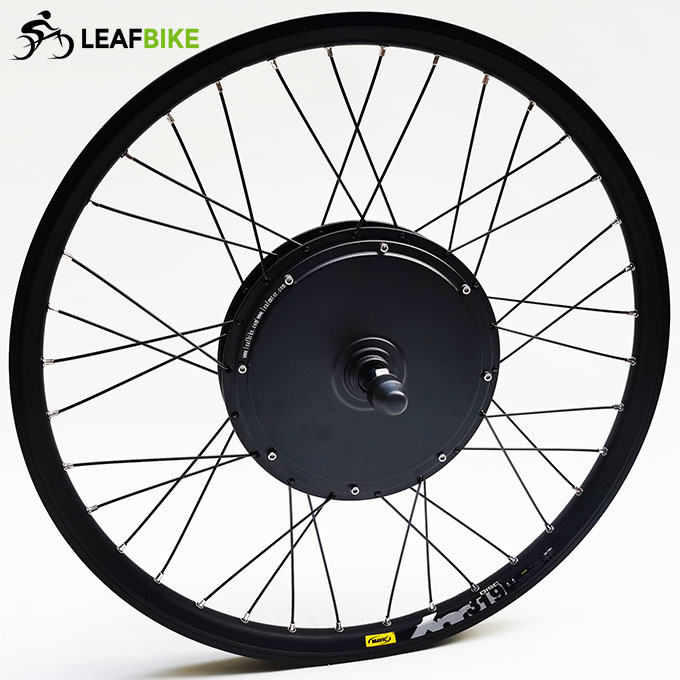

1 x 26 inch 60V 2000W rear bike motor wheel

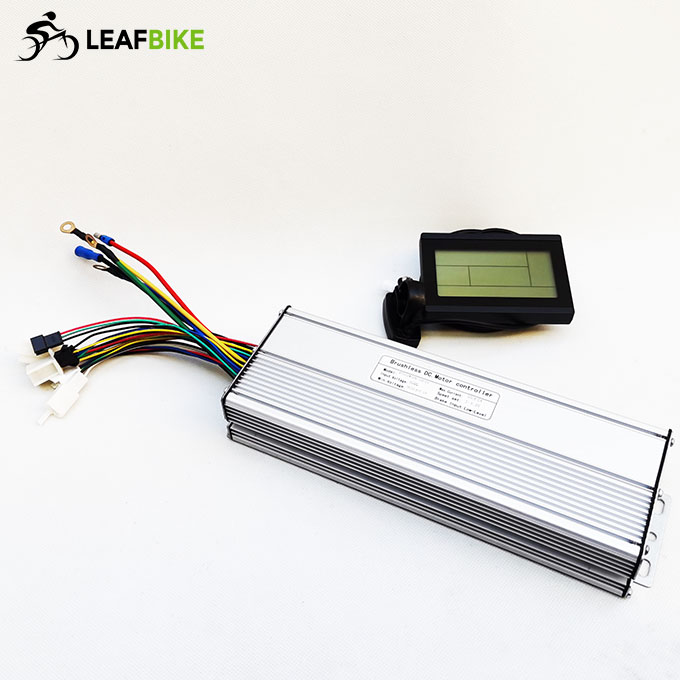

1 x 60V 2000W motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 25.6 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box

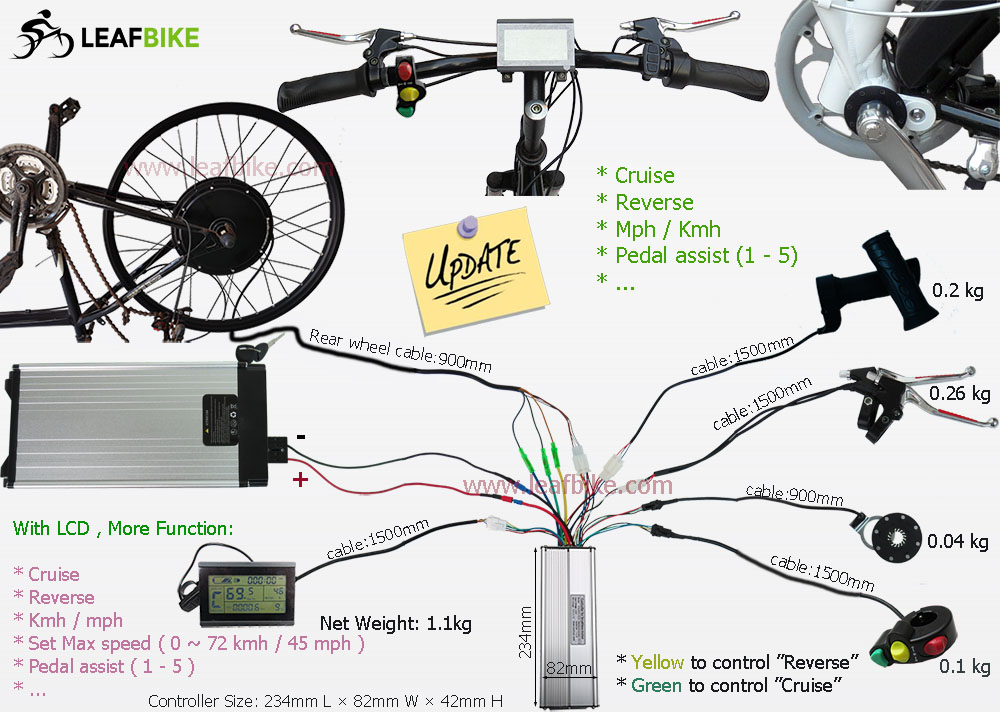

Diagram:	Motor Drw.
