The 27 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque Bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 27 inch bike conversion kit works with a 48V or 52V battery.

Main Features:
>. Rim: 27 inch double wall Alloy (Rim Fit For: 27 x 1-1/4 or 1-3/8 tire)
>. Spoke: 12 gauge / 198mm Length x 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 72.9 kmh -- 45.2 mph Default (Optional other speed: 35mph or 25mph,15mph..please leave message)
>>. Mechanical brake: Disc or V
>>. Freewheel: space for single speed.. 6 speed or 7 speed
>>. Cable location: Shaft end, Left
>>. Cable length: 100cm / 40"
>>. Install: spacing of Min.135mm to Max.155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

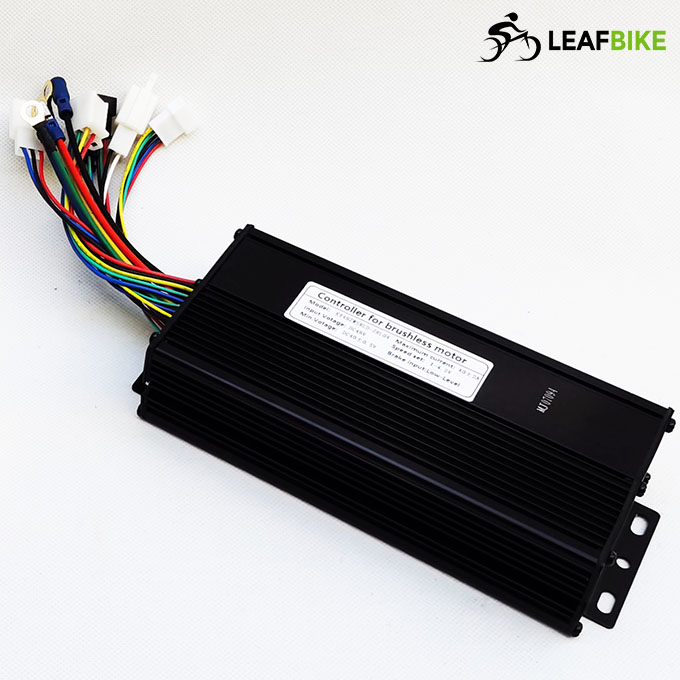

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L x 82 mm W x 42 mm H

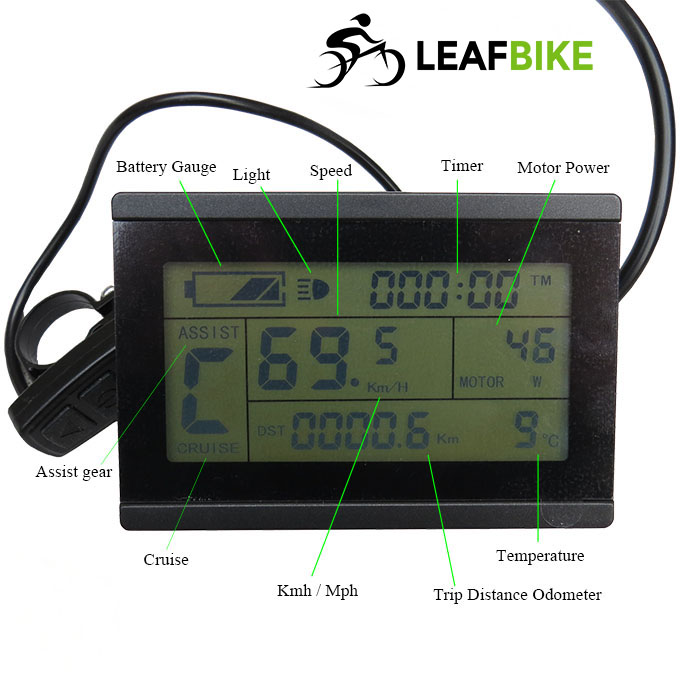

With LCD, More Function:
* Cruise
* Reverse
* Kmh / mph
* Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 0 - 5 )
* ..

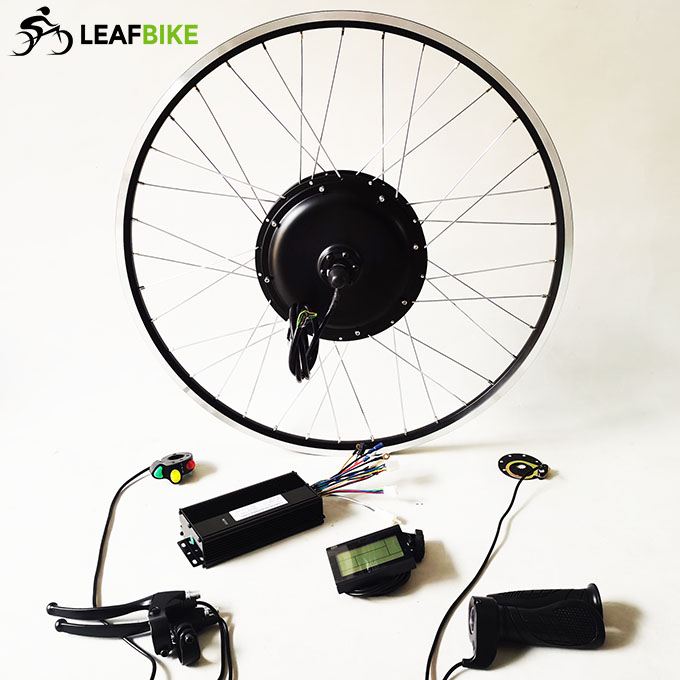

Package Content:

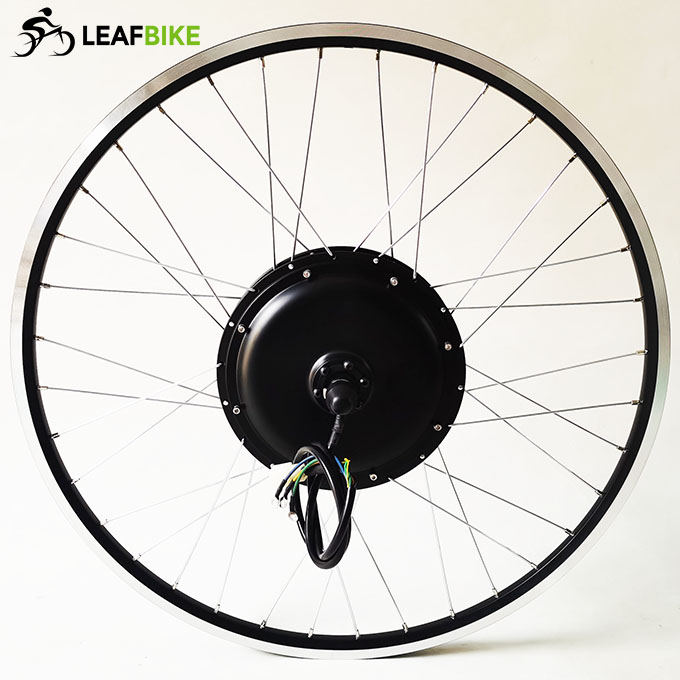

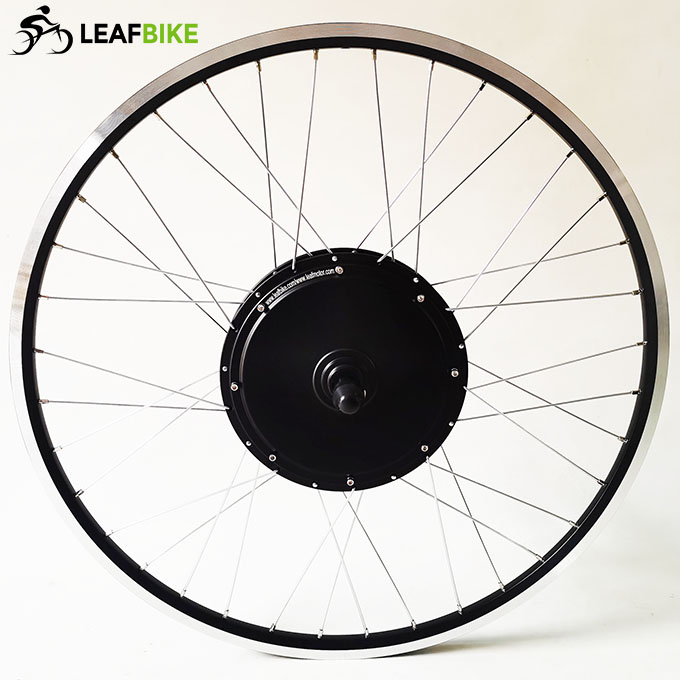

1 x 27 inch 48V 1500W rear hub motor wheel
1 x 48V 40A motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.8 kg
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box

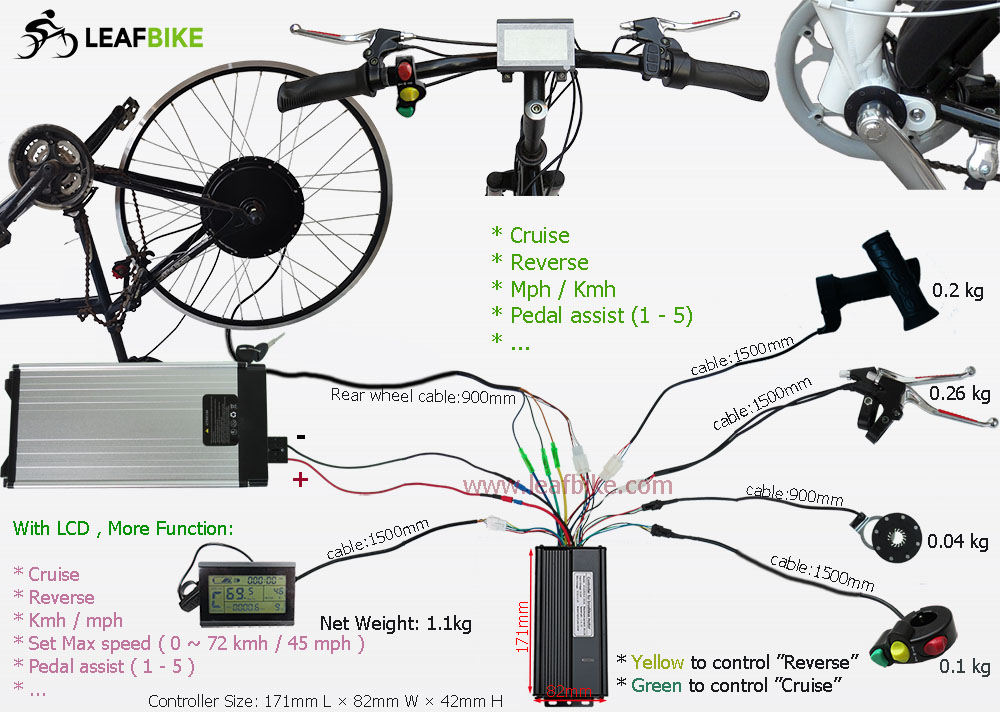

Diagram:	Motor Drw.	Performance:
