27.5 inch 48V 52V 1500W rear hub motor 650b electric bike conversion kit

Item No.: LMCK275481500R
Convert your bike to electric bike with leaf 27.5 inch 48V 52V 1500W rear hub electric bike conversion kit.
Description

This 27.5 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 27.5 inch bike motor kit can work with a 48V or 52V battery.

Main Features:
>. Rim: 27.5 inch / 650B double wall Alloy
>. Spoke: 12 gauge / 173mm Length × 36 pcs


>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 38.1mph
>>. Mechanical brake: Disk or  V
>>. Freewheel: max 7 speed
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of 135mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

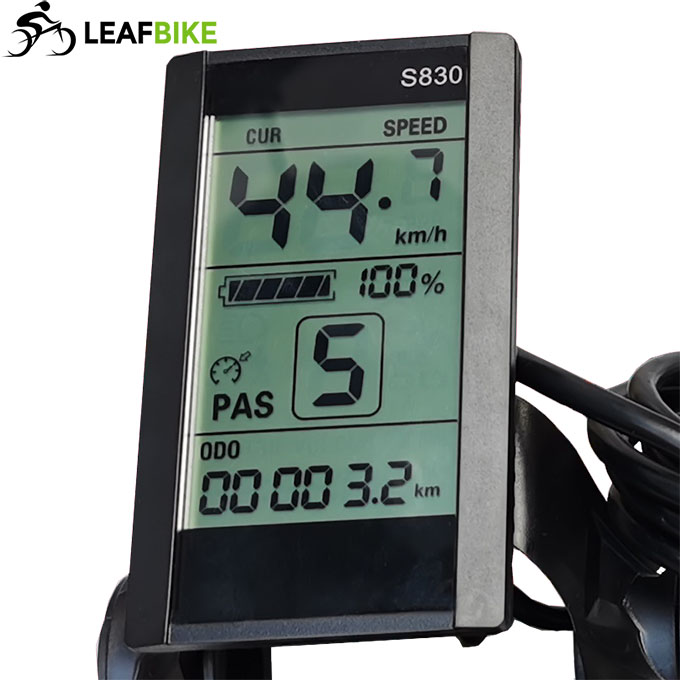

LCD-S830, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ...

Package Content:

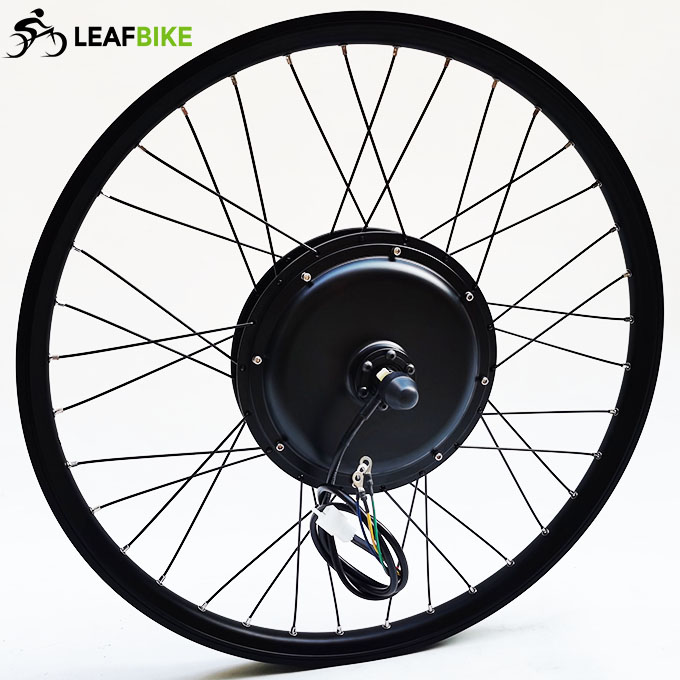

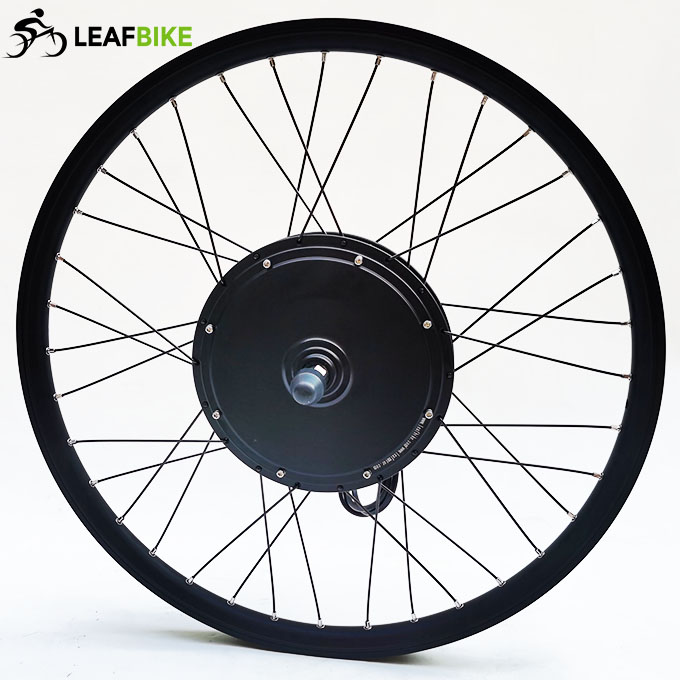

1 x 27.5 inch / 650B 48V / 52V 1500W rear bike motor wheel

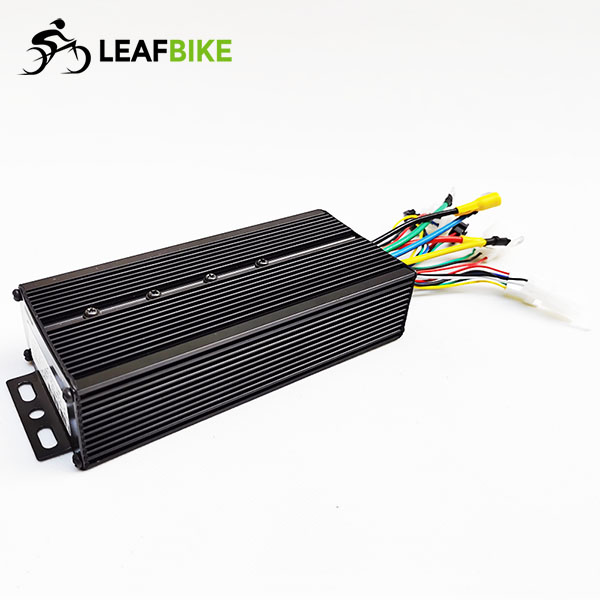

1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 25.6 lbs
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box


 Diagram: Motor Drw.  Performance:
1500w rear hub motor electric bike conversion kit wire diagram 1500w rear freewheel hub motor drawing 1500w hub motor performance data
27.5 inch 48V 52V 1500W rear hub motor electric bike conversion kit
$375
