This 29 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 29 inch bike conversion kit works with a 60V battery.

Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 x 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black color 12 gauge / 189mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine : Bldc electric hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 50mph Default (Free customization other speeds: 40mph or 35mph, 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

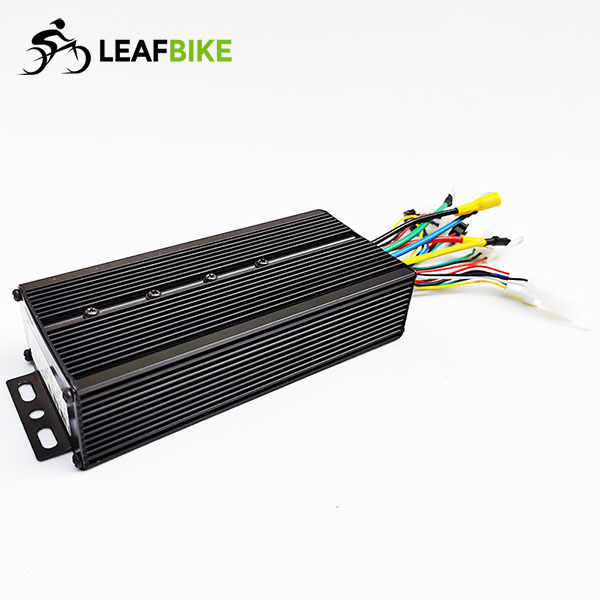

>. Driver: Brushless motor controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

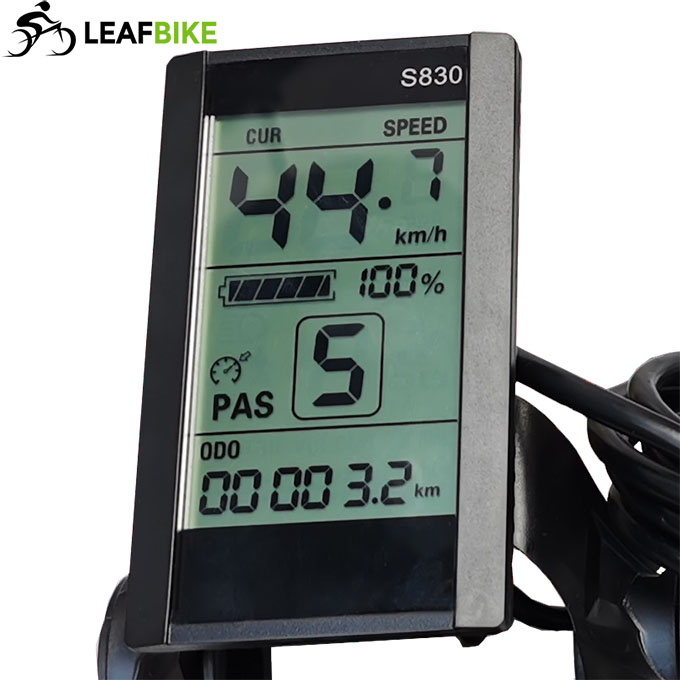

With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backwards")
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours. Please click below link:
https://www.leafbike.com/products/diy-bike-conversion-kit/29-inch-60v-2000w-rear-electric-hub-motor-kit-1511.html
* ...

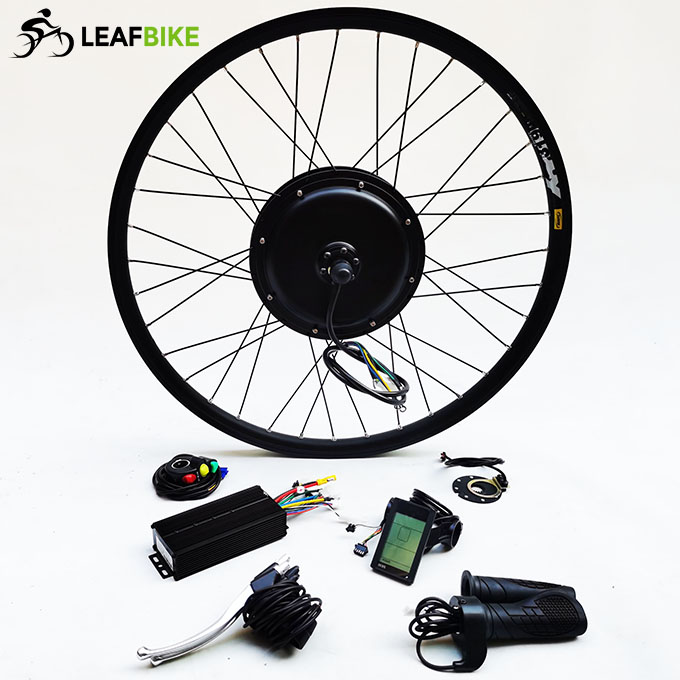

Package Content:

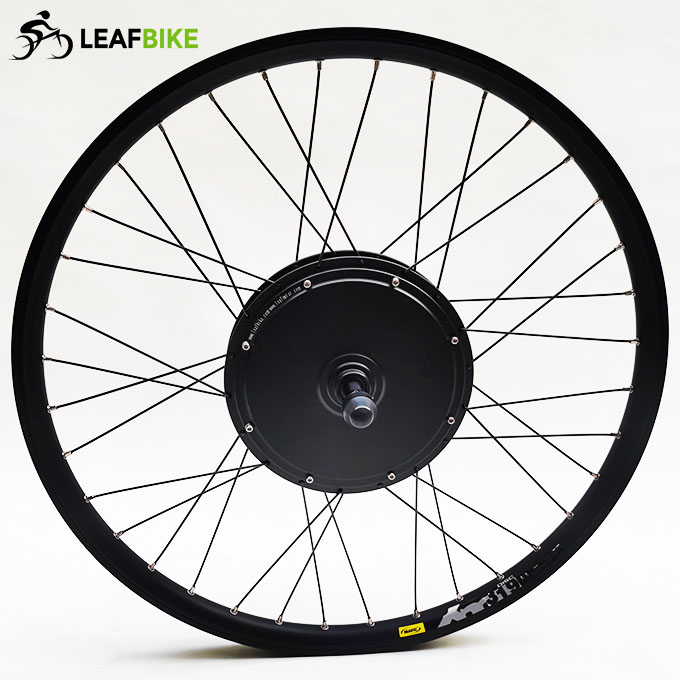

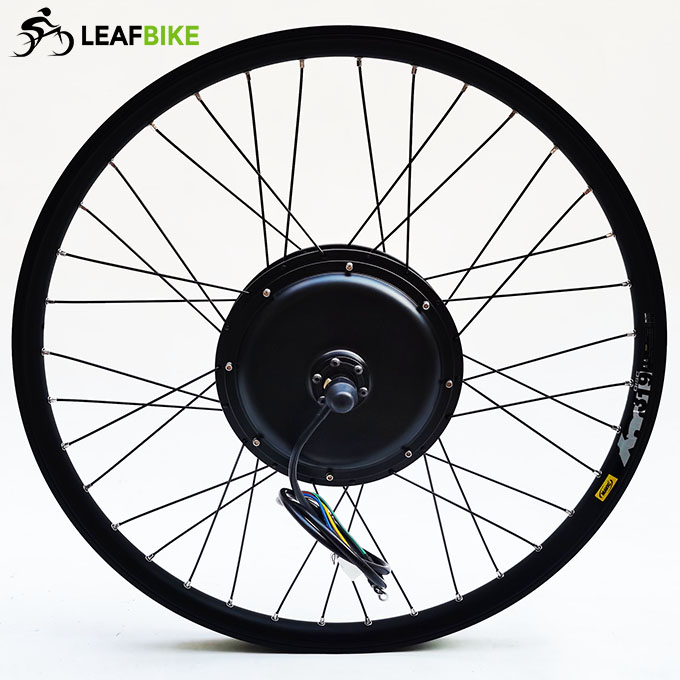

1 x 29 inch 60V 2000W rear hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Diagram:	Motor Drw.
