This 29 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 29 inch bike conversion kit works with a 60V battery.

Main Features:

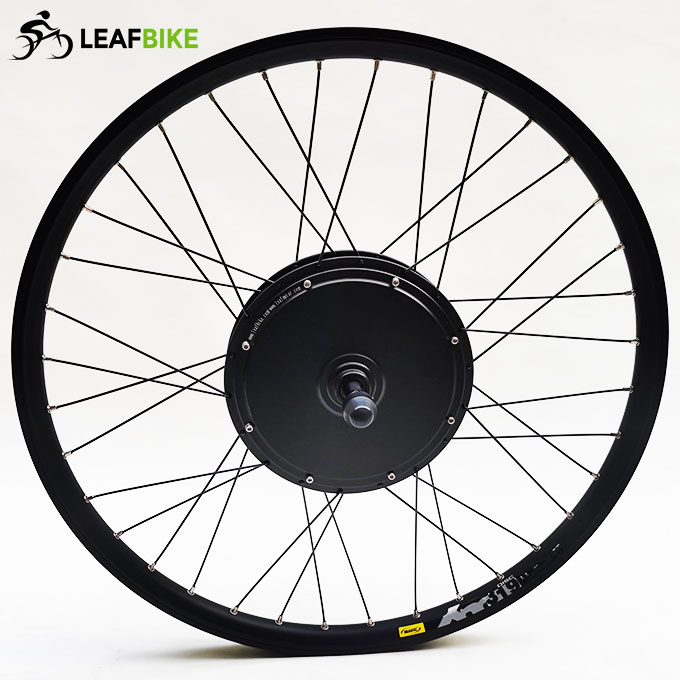

>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 x 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black color 12 gauge / 189mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine : Bldc electric hub motor
>>. Voltage: 60V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 72.4 kmh - 44.9 mph Default (Free customization other speeds: 40mph or 35mph, 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: Brushless motor controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 55 A ± 2 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

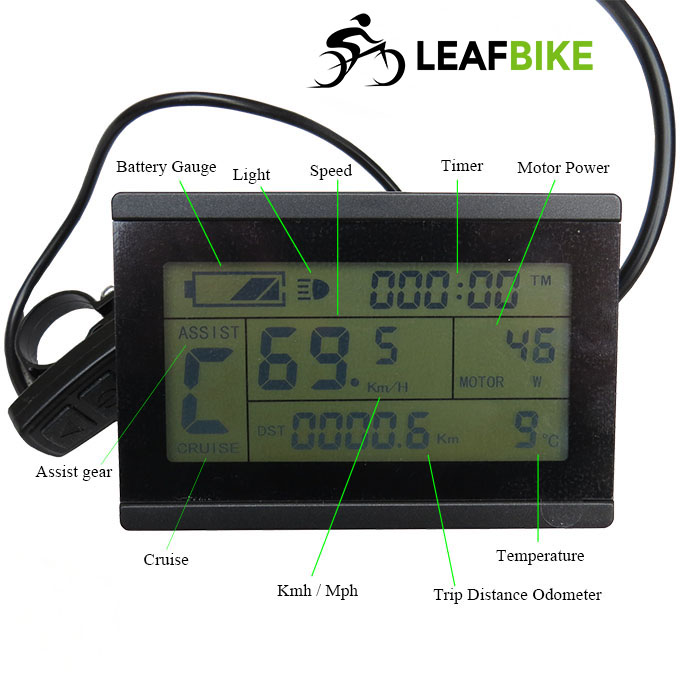

With LCD-003, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backwards")
* Kmh / mph
* Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* ...

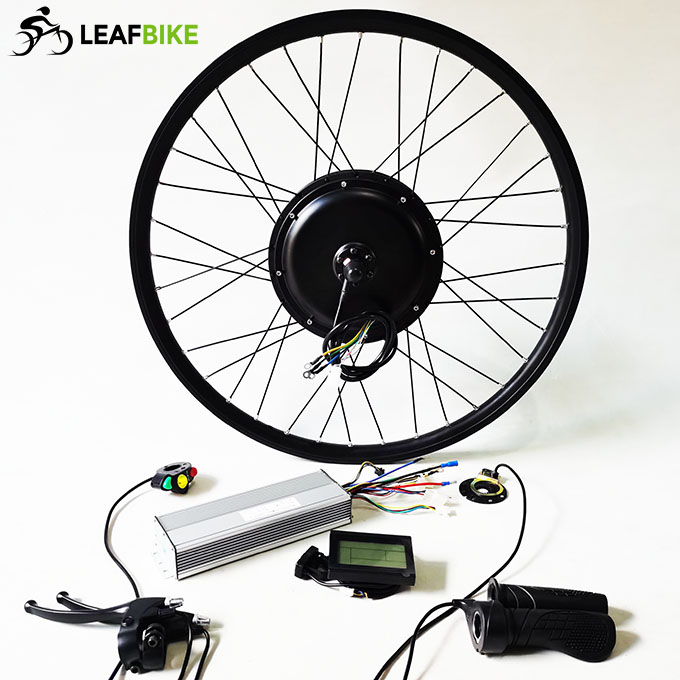

Package Content:

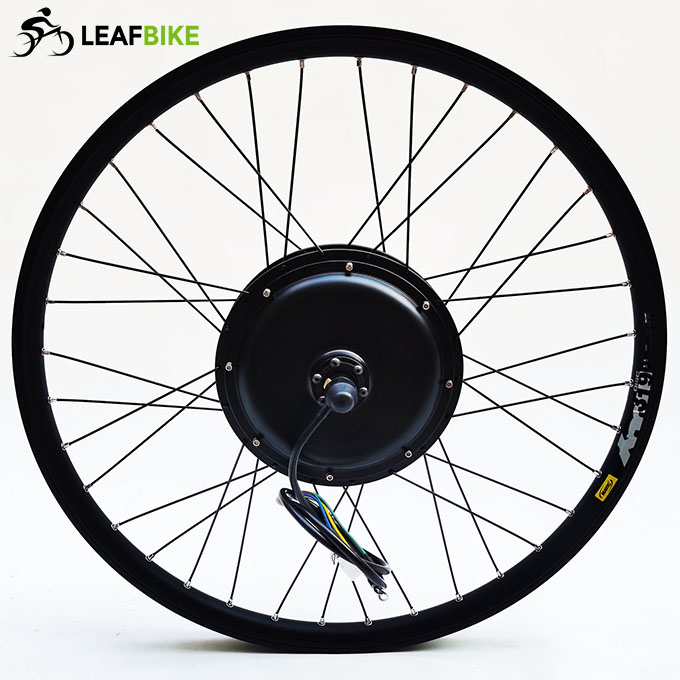

1 x 29 inch 60V 2000W rear hub motor wheel -- Cable length: 1000mm

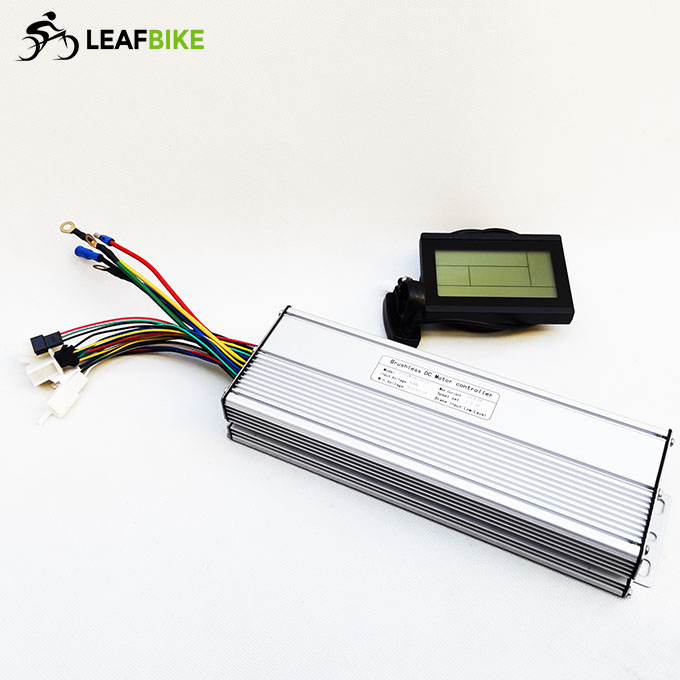

1 x 60V 2000W 18-MOSFET motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.8 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

Diagram:	Motor Drw.	Performance:
