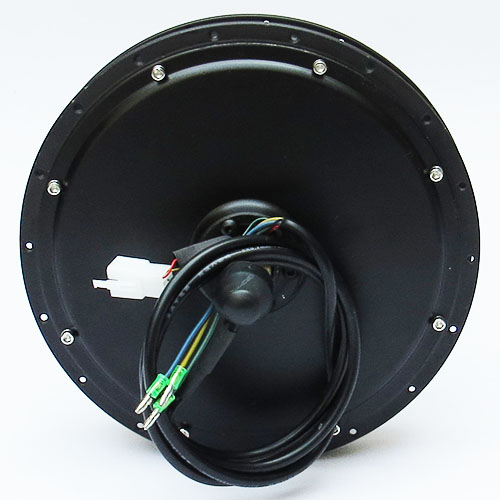

BRAND NEW LEAF BIKE 2024 Version Black Lightning Brushless, Gearless 36V 750W Hub Motor !
New powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" & 29 inch sizes are available.

Detail:
Motor type: electric bike motor
Voltage: 36V
Power: 750W
Max efficiency: 87.5%
RPM: 588
Mechanical brake: Disk or V
Cable location: shaft end, Left side
Cable length:150cm / 60"
Install: spacing of 100mm front fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.3 kg / 14.7 lbs
Gross weight: 7.36 kg ( after packing )

Package Content:
1 x 36V 750W front spoke hub motor
Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box

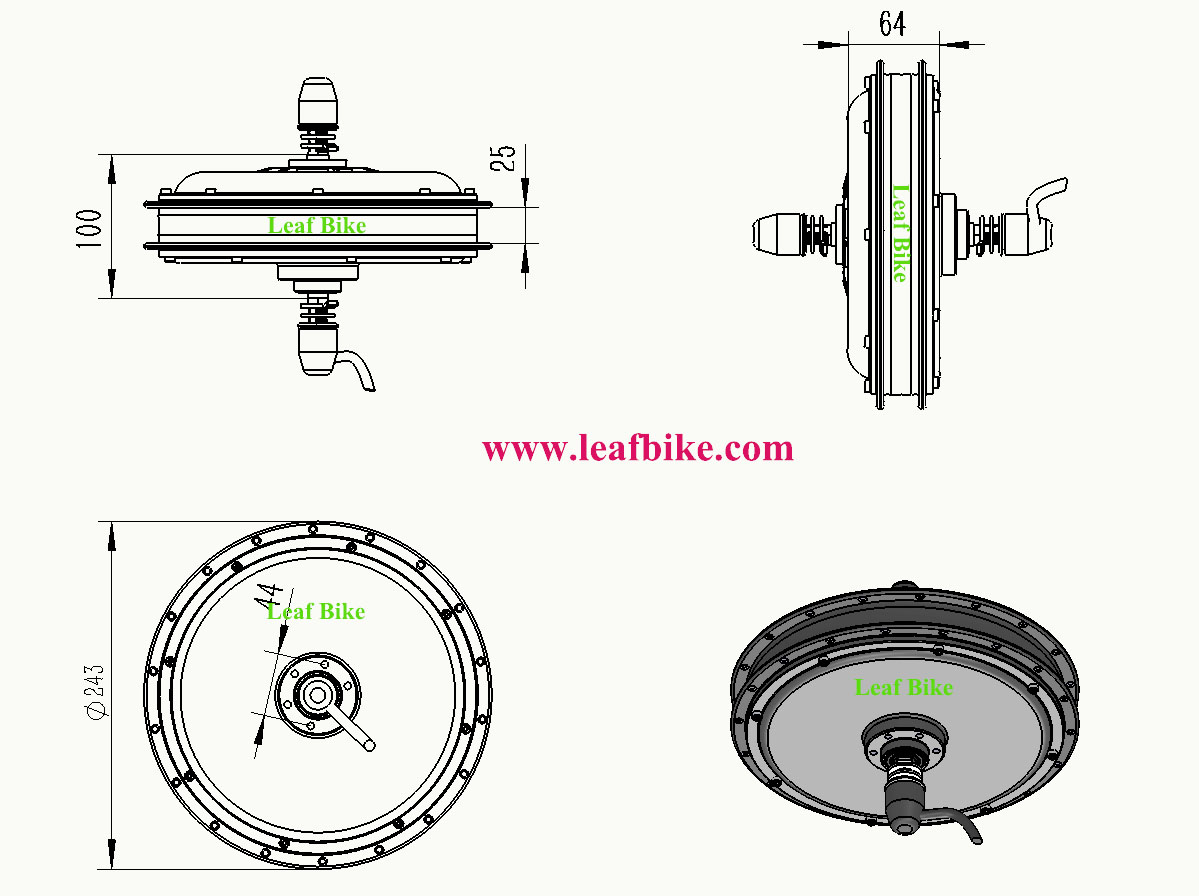

front hub motor Drw.	Performance Data:
