* This hub motor system handle a 48V or 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Detail:
Motor type: electric bike motor
Voltage: 48V / 52V
Power: 1000W
Max efficiency: 90.5%
RPM: 731
Mechanical brake: Disk or V
Cable location: shaft end, Left side
Cable length:100cm / 40"
Install: spacing of 135mm rear fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.4 kg / 14.87 lbs
Gross weight: 7.36 kg ( after packing )

Package Content:

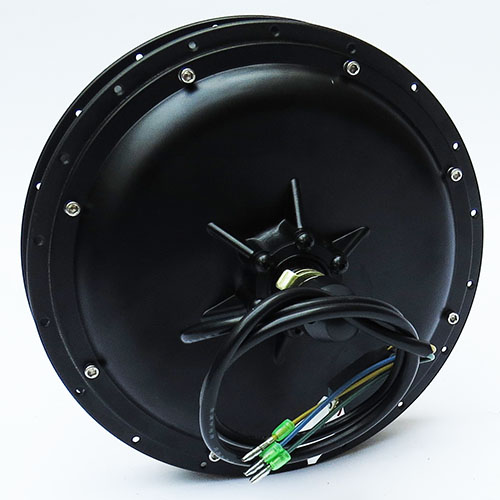

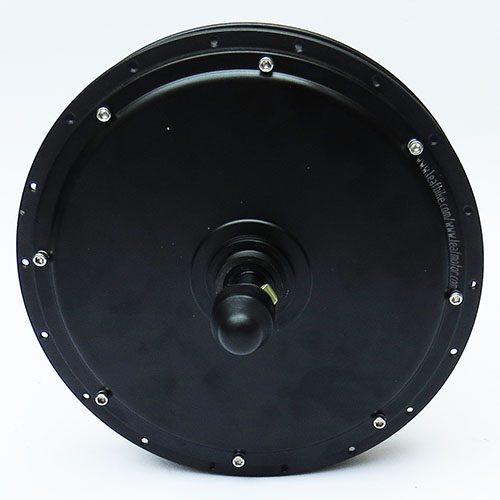

1 x 48V 52V 1000W rear spoke hub motor

Package Size: 28cm L x 25cm W x 30cm H
Package Type: Cardboard Box

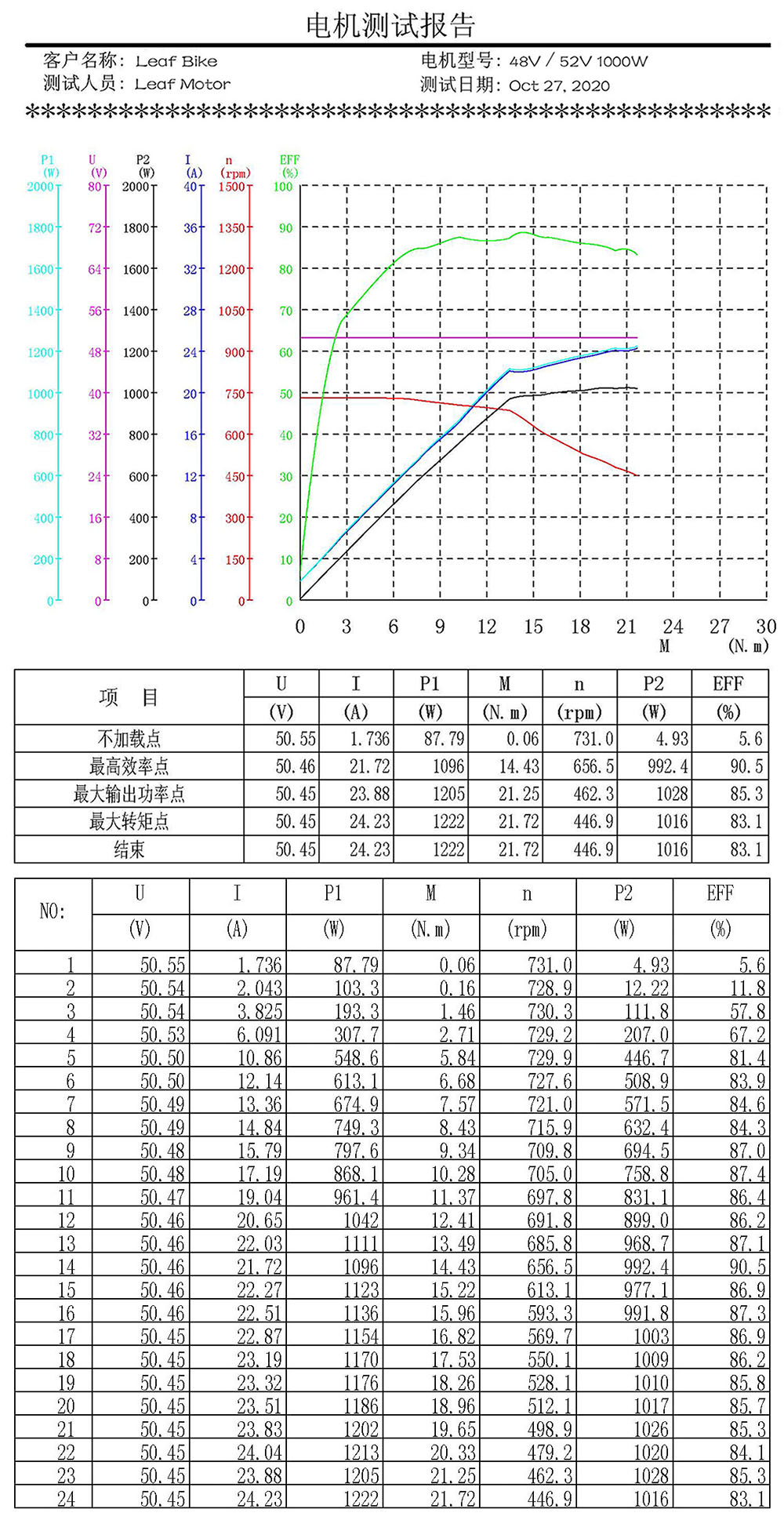

Rear hub motor Drw.	Performance Data:
