* This 700c bike motor kit system handle a 48V or 52V battery.

Main Features:

>. Rim: 700c double wall Alloy (Rim Fit For: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C tire)
>. Spoke: Black color 12 gauge / 184mm Length × 36 pcs


>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 63.2 kmh -- 39.1 mph
>>. Mechanical brake: Disk or  V
>>. Freewheel: max 7 speed
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of 135mm rear fork (Min.135mm ~ Max.155mm)
>>. Noise: < 60 db
>>. Surface: Black painted

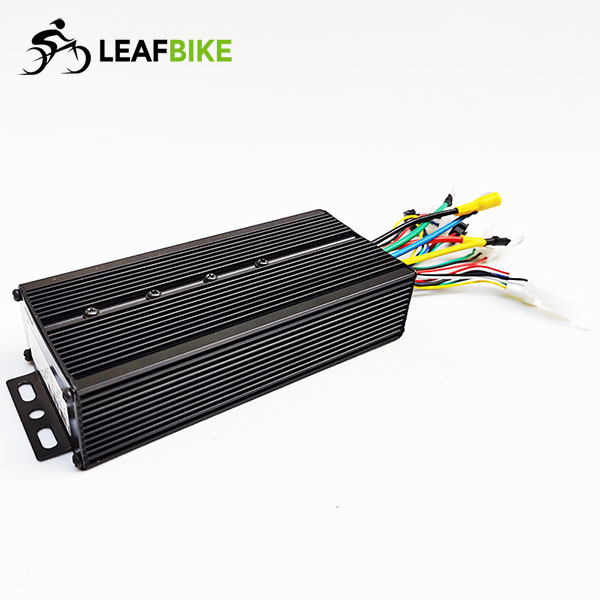

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

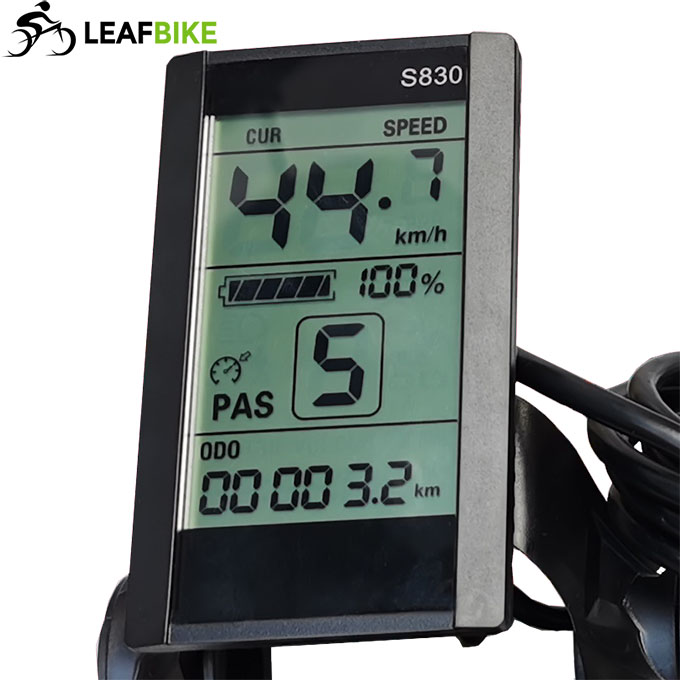

LCD-S830, More Function:
* Cruise - Yes
* Reverse (Optional: On/Off)
* Kmh / mph
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

Package Content:

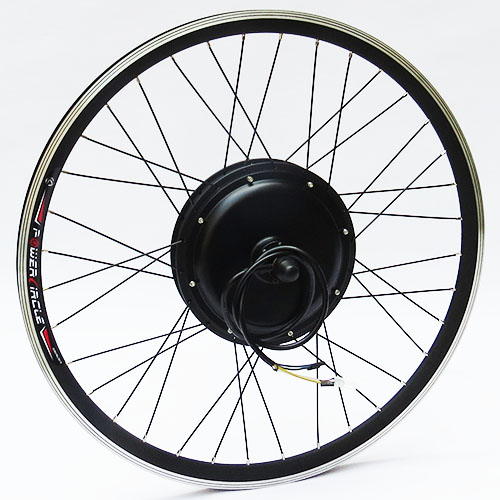

1 x 700c 48V / 52V 1500W rear bike motor wheel
1 x 48V / 52V 1500W 12-MOSFET motor controller
1 x LCD-S830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
